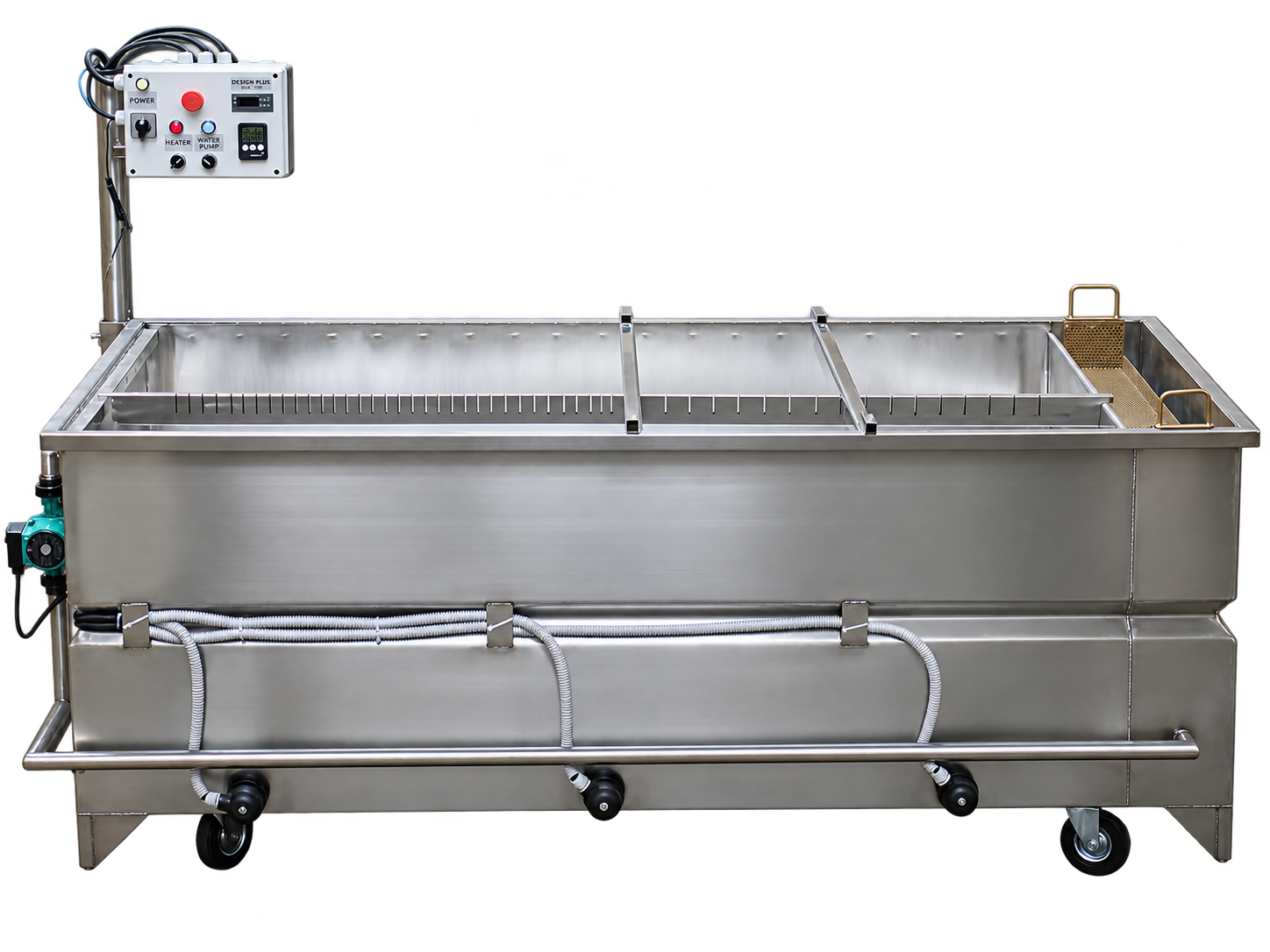

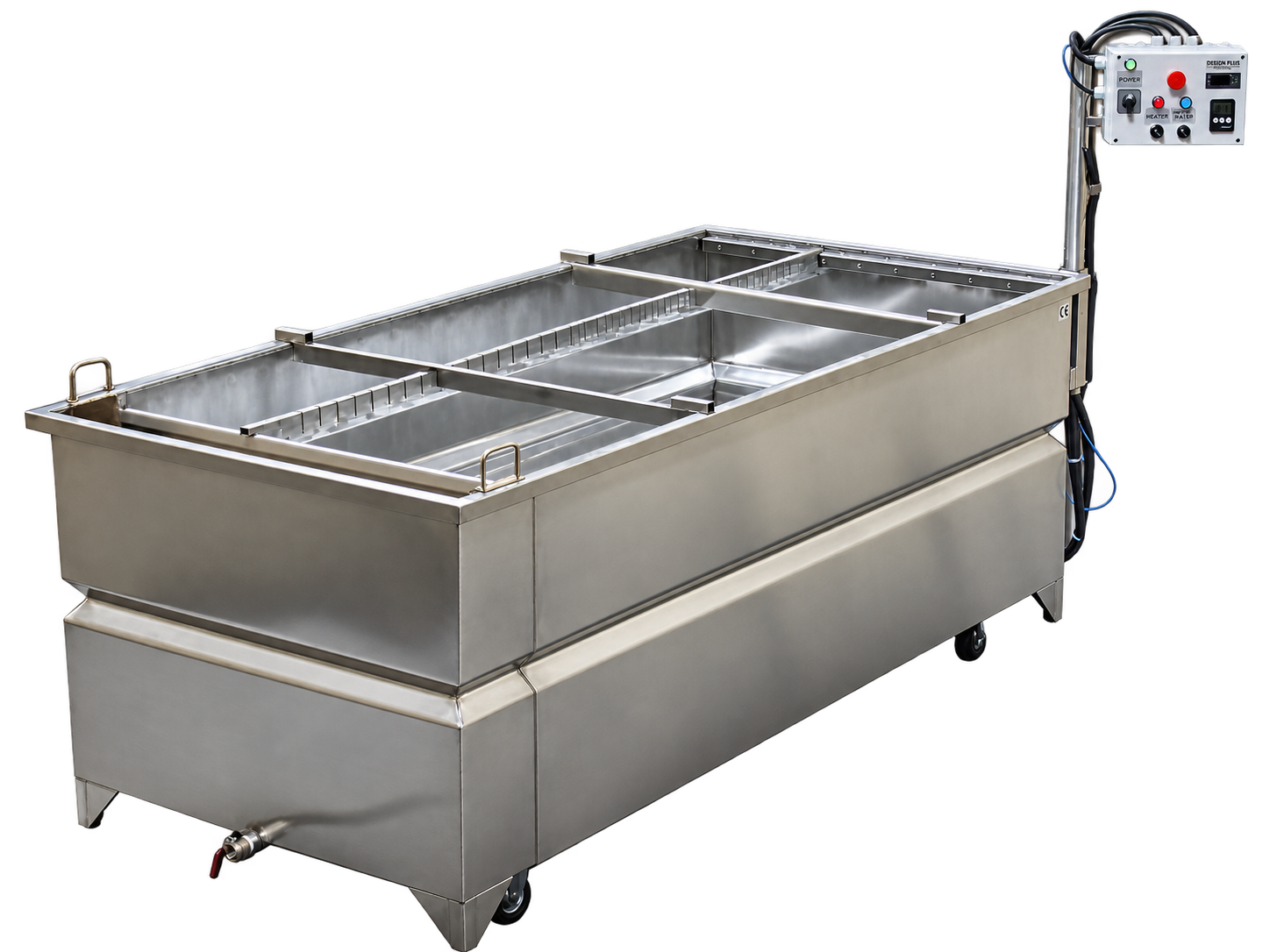

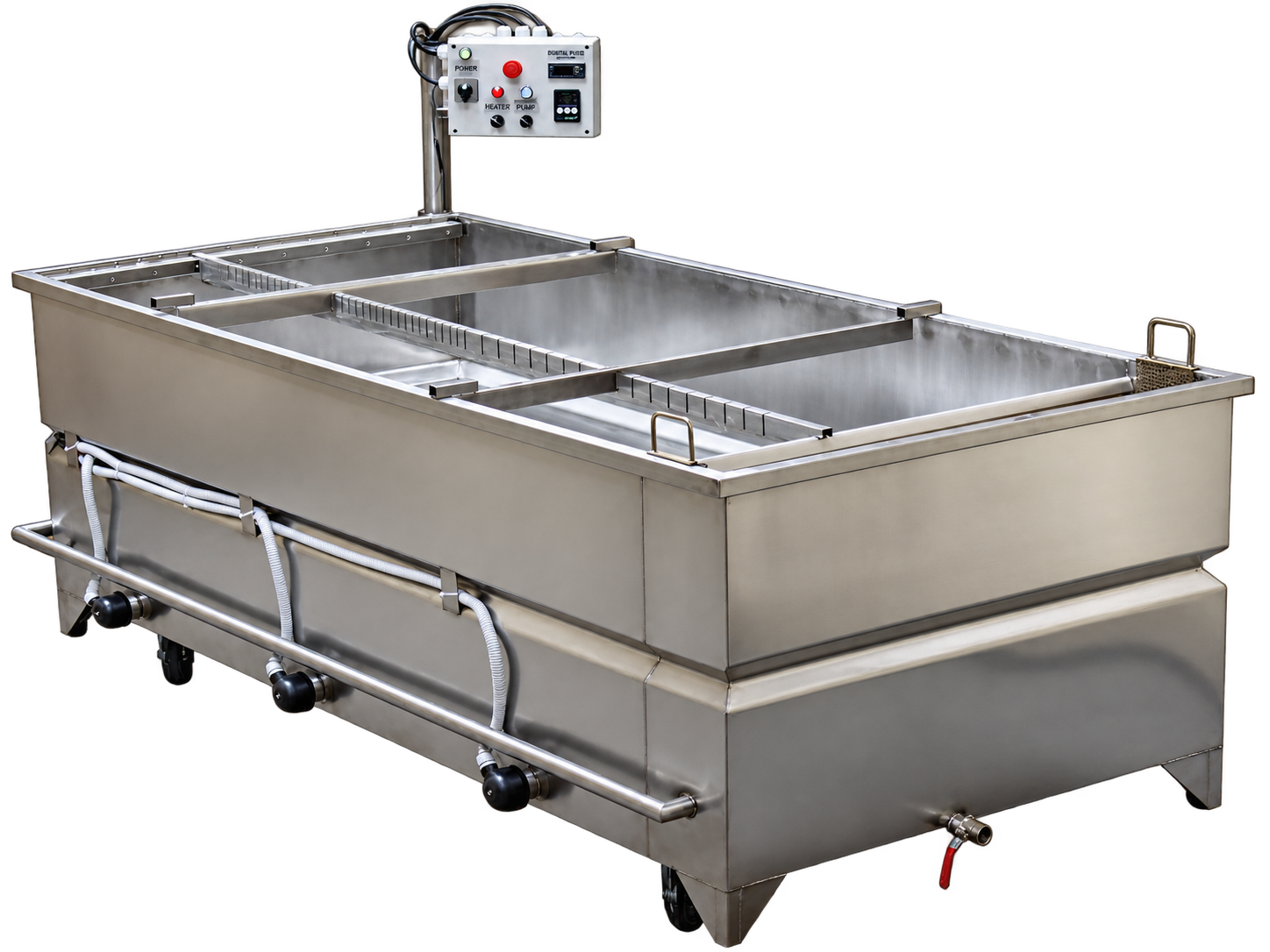

ALANDA Engineering 100 × 200

The COMBO set system combines a hydrographics tank and a washing system in one device. Shared water circulation allows the same hydraulic installation to be used during transfer and for subsequently rinsing film residue from decorated objects.

The solution reduces the need for additional equipment, helps save space and streamlines the organisation of the hydrographics process.

The system includes shared water circulation, a surface filter, a three-stage pump, a replaceable pump filter and a removable basket that traps contaminants.

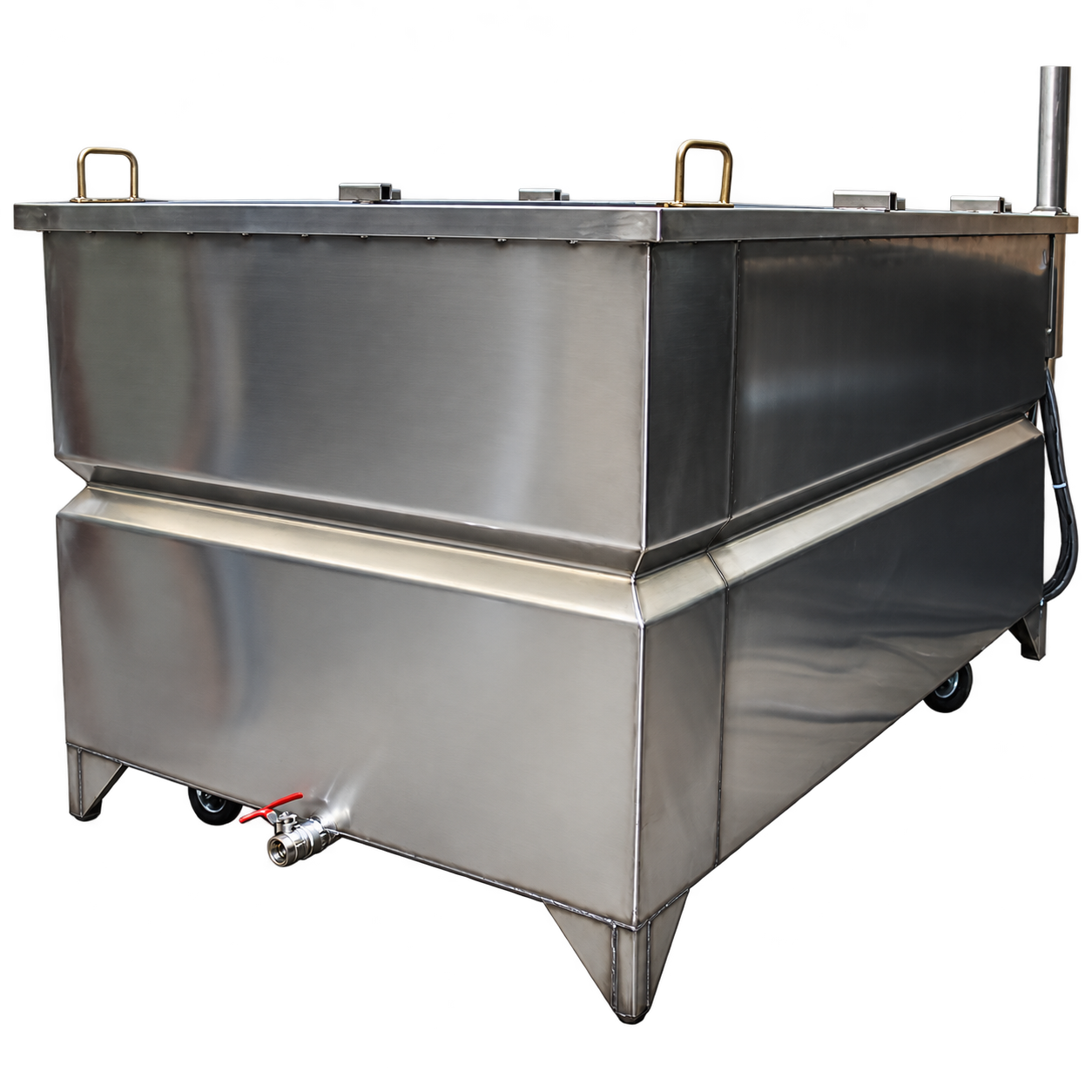

An additional filtration compartment with a drain valve facilitates contamination removal and equipment maintenance.

The valve arrangement directs water to surface filtration or to the washing spray.

An electronic thermostat working with digital temperature measurement helps maintain water parameters suitable for the hydrographics process.

Available heating-power configurations can be selected to suit the equipment’s operating conditions.

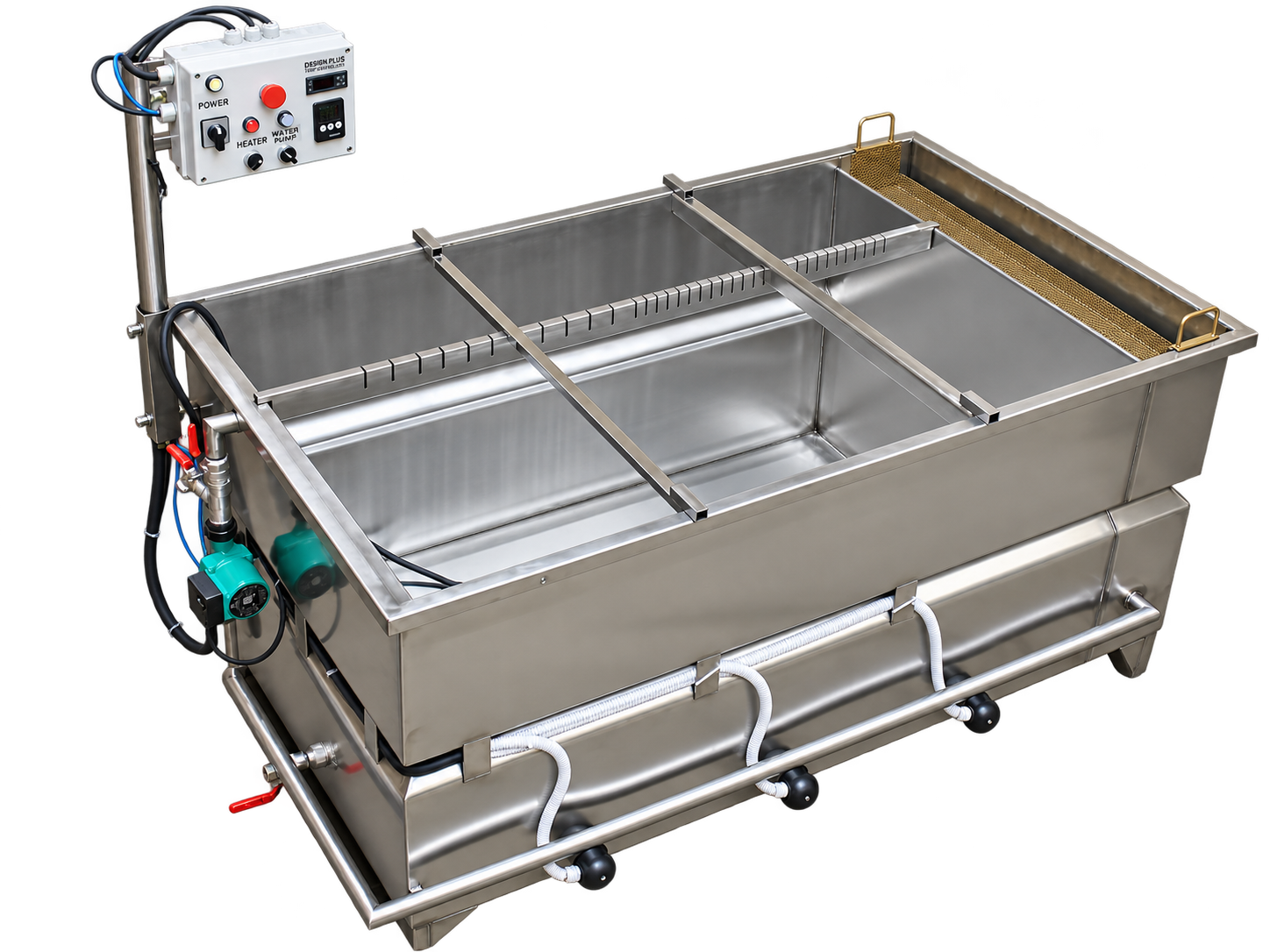

The equipment has an intuitive control panel with active-function indicators, a digital timer and adjustable panel positioning.

Adjustable working-area dividers help prepare the equipment for water transfer printing.

The integrated spray rinses objects after transfer without requiring a separate washing machine.

The system uses the shared water circulation of the COMBO set equipment.

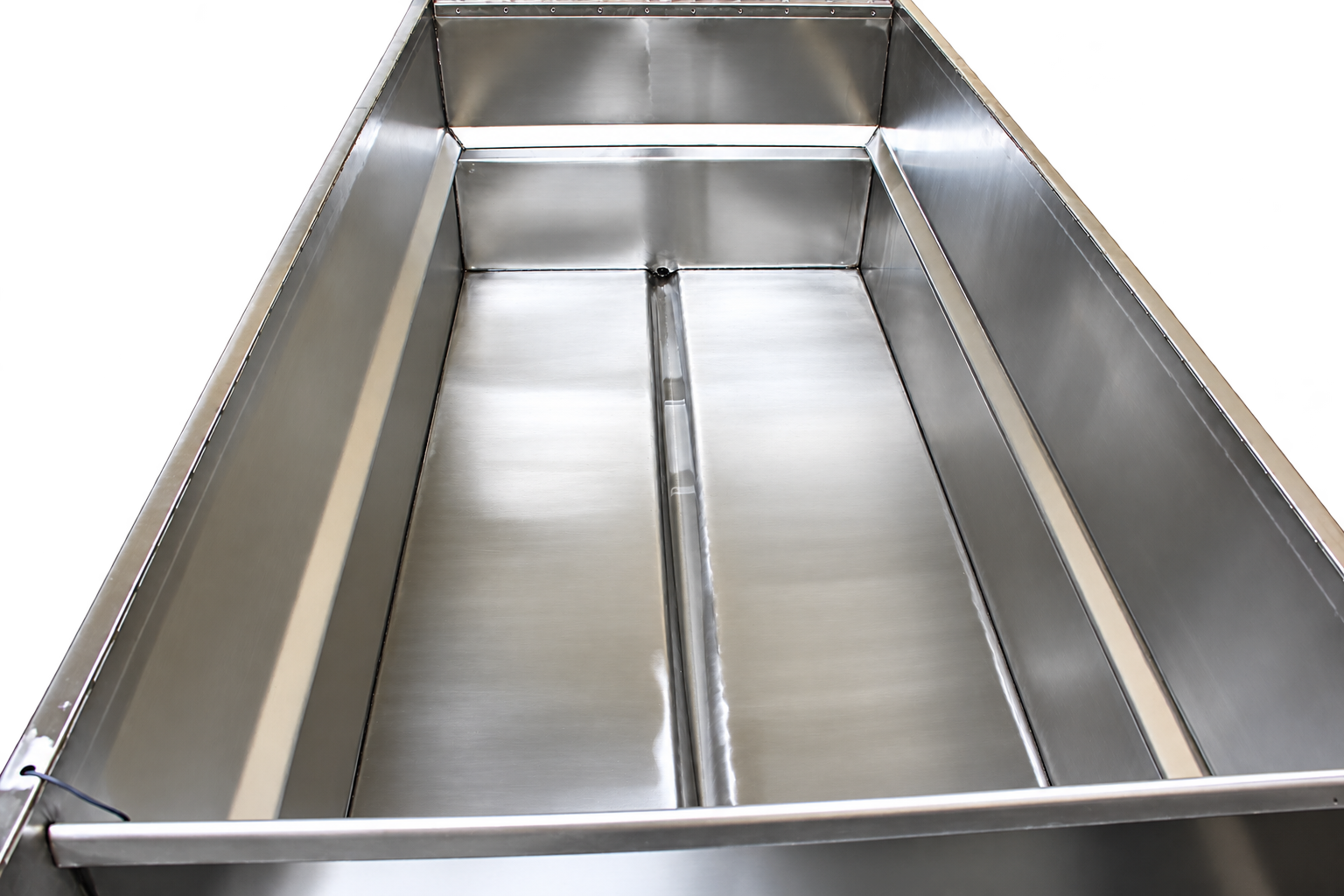

The equipment is constructed from AISI 304 stainless steel.

Wheels make the equipment easier to move, while levelling feet help position the tank correctly, which is important for maintaining the proper water-surface level.
